Spectra-CT Color Tunable Test and Calibration Reference Sources
- Correlated color temperature adjustable from 2800K to 7500K.
- Brightness range from 0.1 to 50000 cd/m2.
- High resolution dynamic range.
- Brightness uniformity > 98%.
- Solid-state light source has a long life.
- Advanced UI for CCT and brightness monitoring.
- Integrated monitoring and brightness monitoring.
- Customizable large field of view uniform light source.
- Customizable uniform light source with single or multiple wavelengths from UV to IR range.
- Customizable spectrometer to monitor spectral output.
| Model | CT-1000-S | CT-1000-M | CT-1000-L |
| Part No | LCA-00389-200 | LCA-00389-300 | LCA-00389-500 |
| System Components | |||
| Sphere diameter | 20cm(8 inch) | 30cm(12 inch) | 50cm(20 inch) |
| Size of the opening | 5cm(2 inch) | 10cm(4 inch) | 20cm(8 inch) |
| Internal coating of integrating sphere | Spectraflect® | ||
| Surveillance detector | Si | ||
| System performance | |||
| Brightness range(cd/m2)* | 1~50000 | 0.5~25000 | 0.1~5000 |
| Brightness uniformity COV** | >99% | ||
| Uniformity Mapping | >98% | ||
| Brightness adjustment steps: | 5 x 104 | ||
| CCT Range(K) | 2800~7500 | ||
| CCTuniformity | ±15K | ||
| Lamp life time (*manufacturer information) | >15000 hrs | ||
| Short-term stability (10min) | ±0.1% | ||
| LED control | DC current | ||
| Preheat time | 30s | ||
| Power Output | 100~240 VAC 50/60 Hz | ||
| Software Specifications | |||
| Connection interface | USB | ||
| Connection agreement | API | ||
| Operating system | Windows 10 | ||
| Machine size | |||
| Size(cm) | 35 x 38 x 28 | 51 x 48.5 x 33 | 72.5 x 71.5 x 57 |
| Weight(Kg) | 10 | 15 | 35 |
| * Brightness range achieved at a certain CCT ** Luminance uniformity is based on NIST COV (coefficient of variation) calculation |
|||
It is mainly used for EMVA1288 related parameter correction such as flat field correction, linearity correction, dark noise correction, dynamic range correction, etc. of various cameras. It is widely used in many industries:

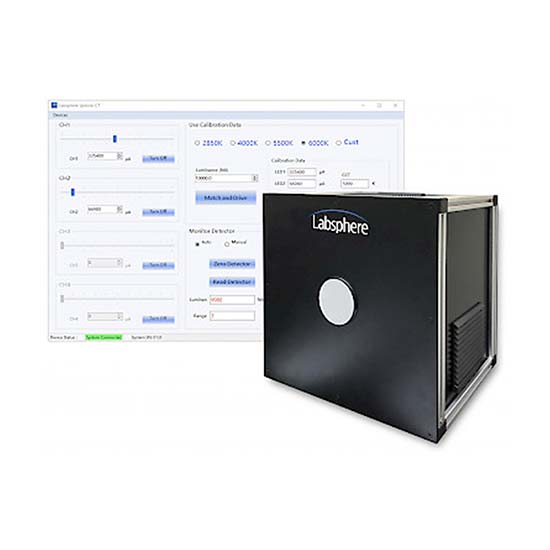

Solid-state flat-field tunable light source, color temperature adjustable from 2800K to 7500K (Spectra-CT)
In recent years, with the rapid development of machine vision systems, more and more production lines use industrial camera-based systems for rapid measurement, guidance, detection and target recognition. One of the main applications is flat panel display inspection systems, especially after the large-scale use of OLED panels in consumer electronics, higher requirements have been placed on machine vision systems. A high-precision machine vision system requires high-performance light sources for correction.
Labsphere Spectra-CT LED integrating sphere uniform light source provides an ultra-uniform, high dynamic range area light source with finely adjustable brightness/color temperature. The integrating sphere light source is based on Labsphere's more than 40 years of optical system development experience, self-developed high reflectivity diffuse reflection materials, and ingenious integrating sphere structure design. It is an ideal solution for R&D testing, quality inspection and production testing in the industry. Program.
The Spectra-CT integrating sphere based uniform light source utilizes warm white and cool white LEDs controlled by a high precision programmable DC power supply. Built-in active cooling system maintains stable output in the brightness range up to 50,000 cd/m2.
The system software is simple and easy to operate, which can be conveniently set, adjusted, and output different levels of brightness and color temperature, and can monitor various indicators of the system in real time. For advanced applications, such as multi-system integration, software APIs can be used.
The Spectra-CT LED integrating sphere uniform light source provides the high-performance light source required to meet the international camera performance test standard EMVA-1288, and can perform flat field correction, linearity correction, dark noise evaluation, etc. for industrial cameras.
