LED panel measurement

Option 1：Hinalea-4200M

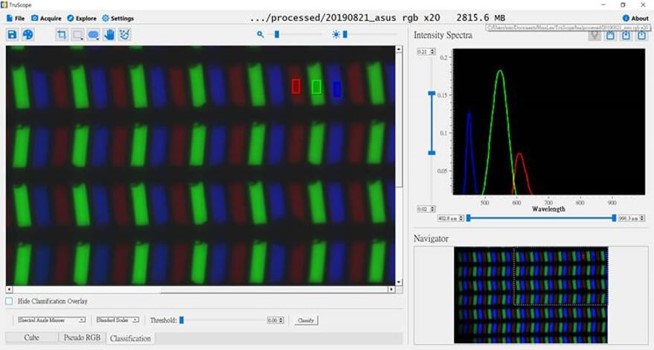

  • Detect pictures：




  • Introduction：

    • To measure the spectrum of LED panels, zoom in and measure the dominant wavelength, peak wavelength, half-wave width and other signals of each LED on the mobile phone panel through the x20 industrial microscope, which can be applied to the development of LED panel inspection.

  • Technical specifications：

    • Waveband range：400-1000nm
    Optical resolution：4nm(FWHM)

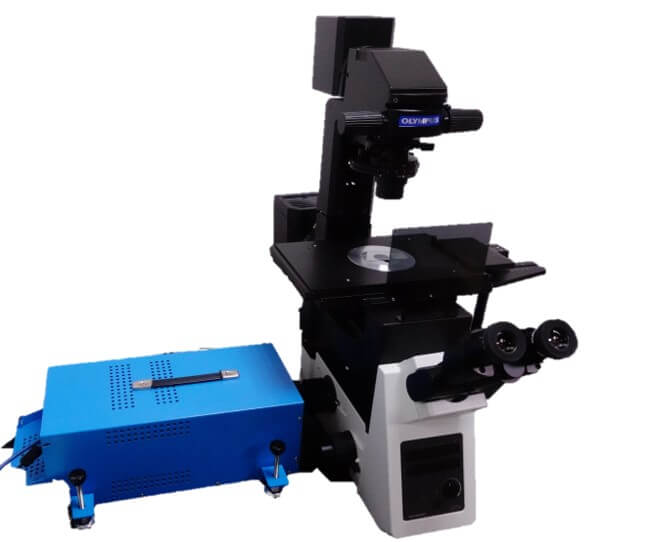

    Microscope：Olympus IX73
    Objective lens：Olympus XAPO x20

    Option 2：VNIR Hyperspectral Camera
  • Detect pictures：




  • Technical specifications：

    • Waveband range：380-800nm
    Sensor：sCMOS Sensor
