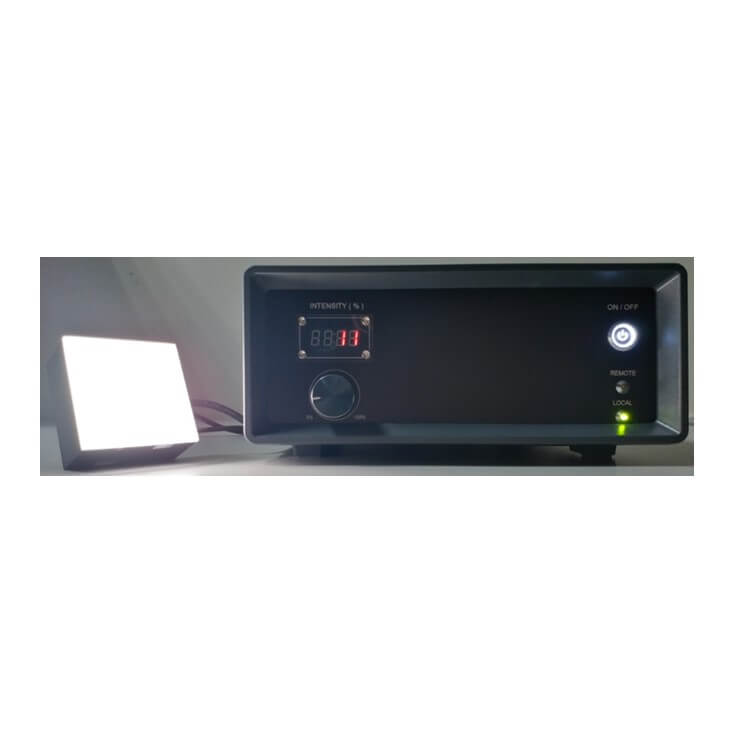

LED light source machine
Features
- Modulized System Design, High Flexibility.
- Customized light source shape.
- Adjustable light source output 0~100%.
- Programmable control to modulate light source output.
Specifications
| LED light source machine | |
| Model | UL75000 |
| Luminance Range | 0~75,000 Nits (Can be adjusted according to customer needs) |
| Effective illumination area | 50mm x 50mm |
| Total dimension | 65 mm x 65mm |
| Light source color temperature | 5000K, CRI > 95 |
| Output djustment | 10〜100％,max. >75,000 Nits |
| Spectrum range | 400nm~800nm |
| Uniformity | +/- 5% (Luminance meter’Center By 40mm x 40mm) |
| Output Stability | Short-term (1-hour) within 5 % after 30 min warm-up，Long-term (3-hours) within 3 % after 60 min warm-up |
| Interface | USB 2.0 interface |
| System composition | Power controller and backlight module |
Applications
Photodetector/CCD response test.
