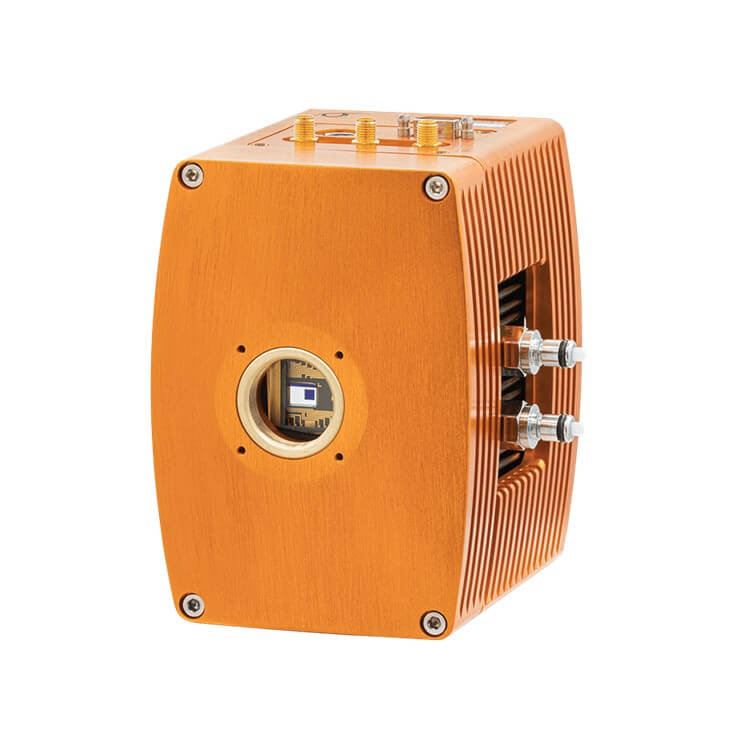

Kestrel 1000
Features
- Up to 1,800 frame per second with ROI –FThe fastest EMCCD on the market.
- 128 x 128 Back-thinned EMCCD sensor –Enables optimum image resolution in low light imaging applications.
- 16 bit Camera Link output –Realtime imaging for low latency photon to digital image.
- Up to 95% QE from back-illuminated sensor –Optimum Photon collection.
- Strong VIS and NIR response and ultrawide bandwidth –From 350nm through to 1100nm.
Specifications
| Kestrel 1000 | |
| Focal plane array (FPA) | BT EMCCD |
| FPA size (px) | 128*128 |
| Spectral range (QE > 10%) |
350-1100nm |
| FPA operating temperature | -20°C |
| Dark current | <1 @ -20°C |
| Frame rate in USB 3.0 (fps) |
NA |
| Frame rate in CameraLink™ (fps) |
1000 |
| Digitization (bits) | 16 |
| Computer interface | CameraLink™ |
| ※ For more detail, please download specification document. | |
Applications
Adaptive Optics and Astronomy
Calcium signaling
Fluorescence imaging
High resolution fluorescence imaging
Hyperspectral imaging
X-ray & High energy
Particle Image Velocimetry
High speed object tracking
