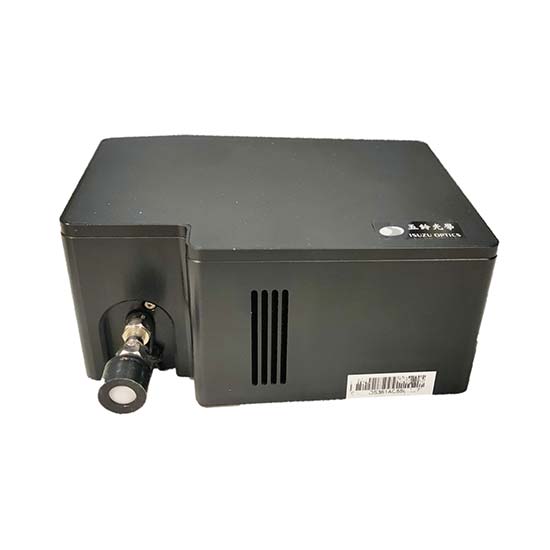

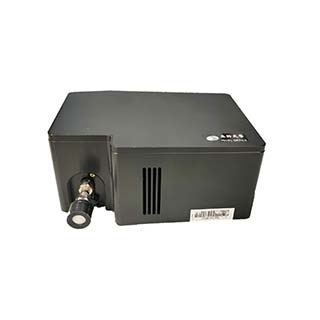

ISM-Irradiance 1000-1600nm
Features
- Variety of spectral ranges for customers to choose.
- Easy to operate and measure..
- W/m2, wavelength, etc.
- Application software developed by Isuzu Optics Corp.
- Export to excel or word pad.
- Sorting light source to where it belongs.
Specifications
| ISM-Irradiance 1000-1600nm | |
| Spectral Range | 1000-1600nm |
| Accuracy | ±2% |
| Repeatability | ±0.5% |
| Environmental Conditions | 10 to 40°C，Humidity < 85% |
| Interfaces | USB 2.0 |
| Resolution(FWHM) | ~7.2nm |
| CCD Pixel | 256 pixel |
| A/D Converter | 16 bits |
| PC software | Windows 7~10 |
Applications
Applied in general lighting, R&D at light products manufacturers, inspection of light sources, lighting design, LED related products and variety of illuminant.
