Hinalea 4455 XSWIR
Features
- Extended SWIR (XSWIR) Detection: Covers 1120‑2100 nm with 225 spectral bands and 15 nm (FWHM) spectral resolution for material identification in long‑wave SWIR region
- Fast Data‑cube Acquisition with Dynamic Band Selection: Captures full high‑spatial‑resolution hyperspectral data‑cubes within seconds. Users may select only subsets of bands to optimize acquisition and processing efficiency
- Superior Image Uniformity: Eliminates typical image‑uniformity limitations found in line‑scanning and patterned‑filter snapshot multispectral imagers for consistent frame‑wide image quality
- Compact, Lightweight & Easy Deployment: Small form factor, lightweight and cost effective design with high mounting flexibility, compatible with various payload platforms

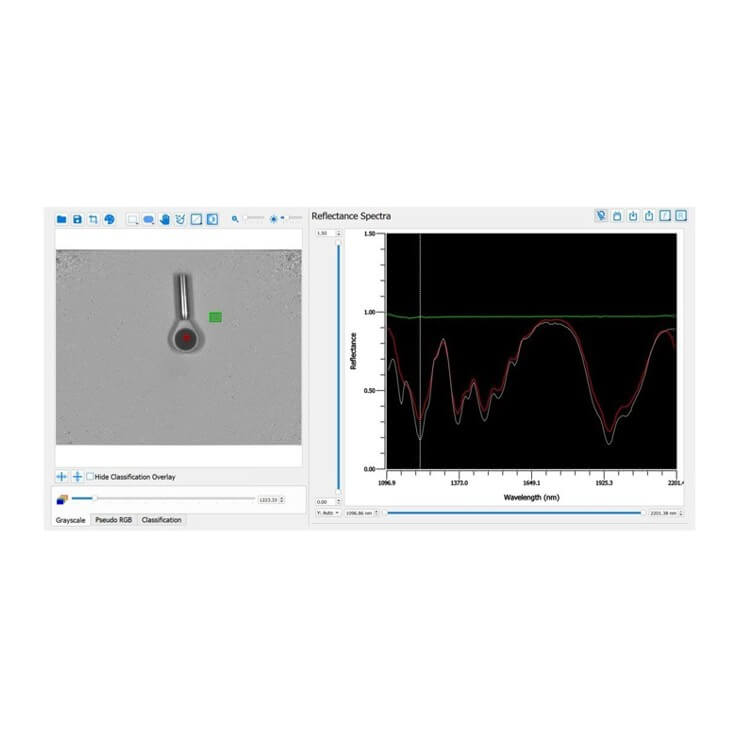

- Powerful Proprietary Software Suite:Dedicated application software supports fast hyper‑cube capture, intuitive image classification, segmentation and comprehensive spectral‑image exploration tools

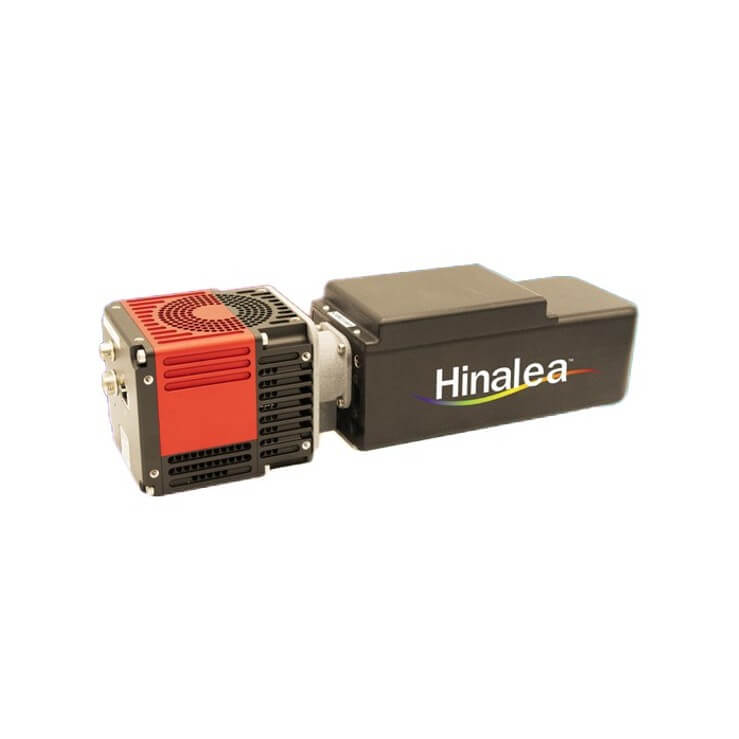

Hinalea Model 4455 is an Extended SWIR (XSWIR) hyperspectral imaging sensor built on front‑staring Fabry‑Perot technology. Compact size, lightweight and highly portable, it covers 1120‑2100 nm with integrated hardware‑and‑software for lab, production‑line and field‑deployed applications.
Specifications
| Hinalea 4455 XSWIR | |
| Dimensions (LxWxH) | 80 mm × 80 mm × 264 mm |
| Weight (Mass) | ~2.72 kg (~6 lb.) |
| Input voltage | 110 VAC / 60 Hz or 220 VAC / 50 Hz |
| Data interfaces | USB-C / USB 3.0, Gigabit Ethernet / IEEE 802.3 1000BASE-T, IEEE 802.3af (PoE) |
| Operating temperature | 15 °C ～ 30 °C |
| Humidity | 65% non-condensing |
| Standard lens | 100 mm FL, 30 degree FOV |
| Sensor spatial resolution | 636 x 508 pixels |
| Spectral range | Designed for ~1120 nm to 2100 nm |
| Spectral bands | 225 |
| Spectral resolution | ~15 nm |
| Dynamic range | User selectable; 8- or 16-bit |
| Illumination | Optional |
Applications
Agriculture & Food Science
Materials Science & Industrial Inspection
Pharmaceuticals & Chemical Industry
Environmental Monitoring
Security & Detection
Military
Scientific / Academic Research
