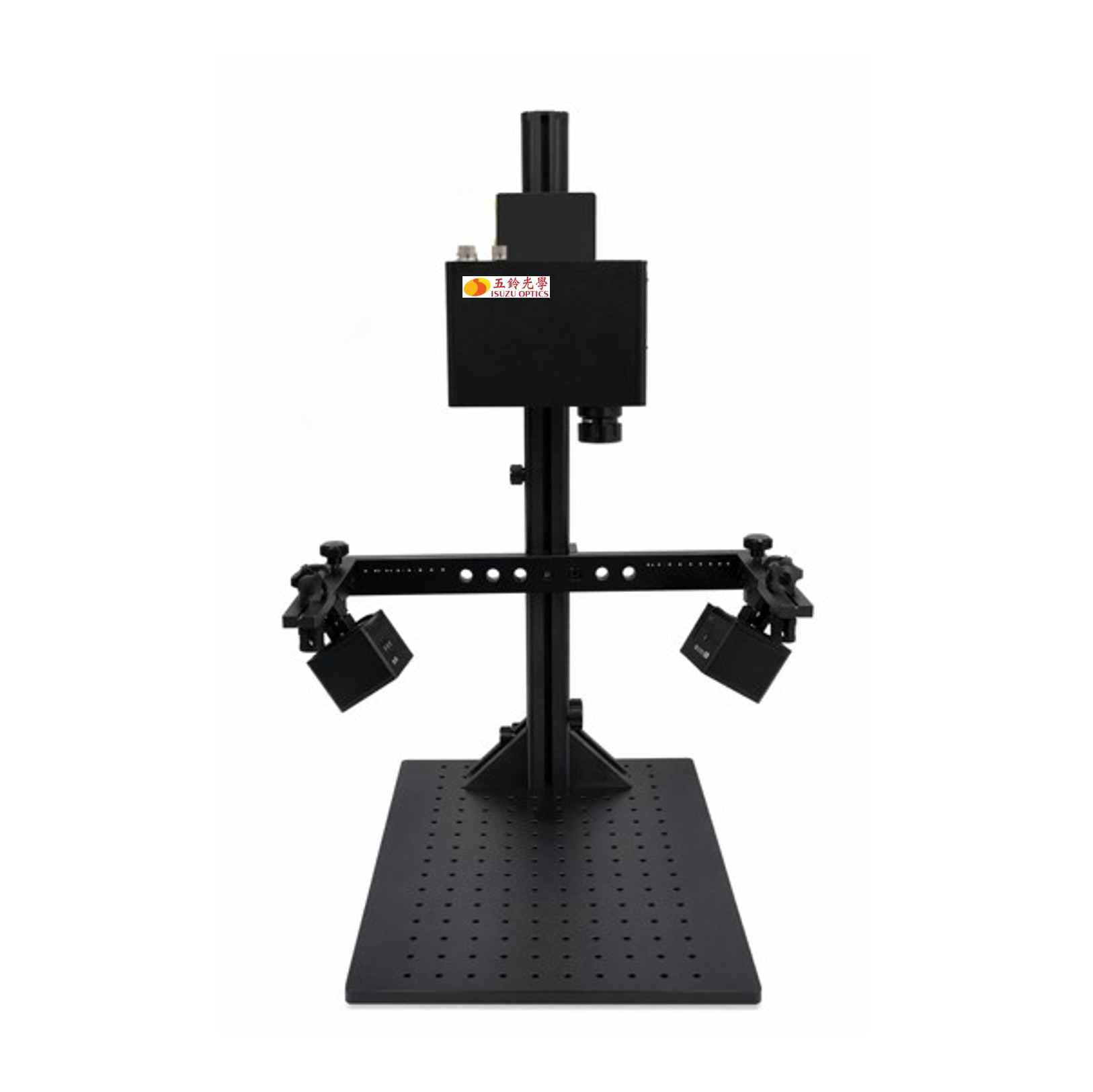

FS-PolCam
Features
- User-Friendly: Intuitive interface for easy data analysis without professional skills.
- Stokes Parameters: Calculates S0–S3 from polarization images.
- Visualization: Tools like Heatmaps, AoP, and DoP maps for efficient analysis.
Specifications
| FS-PolCam | |
| Resolution | 2448 (H) × 2048 (V) |
| Sensor | 2/3" Sony IMX264 Global Shutter CMOS |
| Pixel Size | 3.45 μm × 3.45 μm |
| Spectral Response | 400 nm to 1000 nm |
| Dynamic Range | 8bit、12bit |
| Interface | GigE & USB |
| Image format | TIFF, RAW |
| Measurement data | Stokes S0~S3 |
| Optical interface | C-mount |
| * Product specifications are for reference only and may be adjusted based on actual requirements. | |
Applications
Typical Application Scenarios：
Polarization Image R&D and Verification
Material / Surface Structure Analysis
Industrial Inspection and Defect Recognition
Target Users：
Optical / Imaging R&D Engineers
Industrial / Academic Research Institutes
Industrial Inspection Application Developers
Case Study
Polarization Dynamic Imaging
