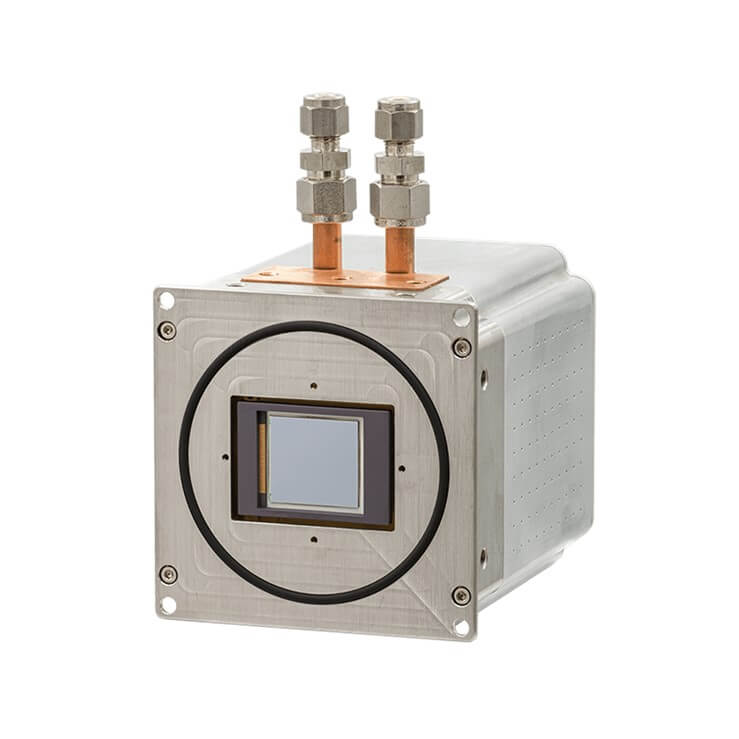

Eagle XV
Features
- Introducing a high energy direct X-Ray In Vacuum version one of the most sensitive CCD cameras in the World. The Eagle XV is available in a range of options including sensor resolution, sensor type, cooling and feedthrough options – including trigger, liquid, power and CameraLink. This freedom of choice offers cameras to meet your exact needs.
Specifications
| Eagle XV | |
| Model | E2V 4240 / 4710 |
| Focal plane array (FPA) | AIMO BT CCD |
| FPA size (px) | 2048x2048 / 1024 x 1024 |
| Spectral range (QE > 90%) |
12eV to 20keV |
| FPA operating temperature | -80°C with 10°C coolant -70°C air cooled with 25°C ambient |
| Dark current (sensor at -80 °C) |
BN-DD: ~ 0.016 e/p/s BN: 0.0005 e/p/s |
| Integration Time | Up to 60 mins |
| Digitization (bits) | 16 |
| Computer interface | CameraLink™ |
| ※ For more detail, please download specification document. | |
Applications
X-Ray Imaging
X-Ray Diffraction (XRD) and X-Ray Fluorescence (XRF)
X-Ray Plasma Imaging and Diagnostics
Soft X-Ray Microscopy
EUV X-Ray Spectroscopy
X-Ray source characterization
X-Ray Phase Contrast Imaging
X-Ray Tomography
VUV/EUV/XUV Imaging and Lithography Crystallography
